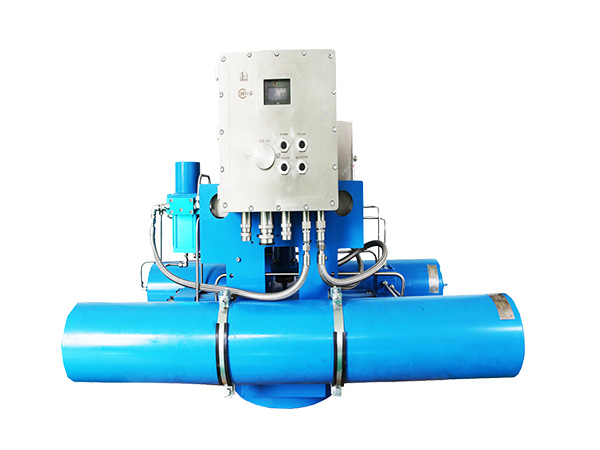

SJMC- C series electro-hydraulic actuator

C series electro-hydraulic actuator product features:

1.Wide range of output torque (60Nm -90000Nm) and high thrust (13kN -500KN)

2. Fast response speed (5Hz) and high control accuracy (<0.1% of full stroke)

3. Hydraulic pump is used, hydraulic unit is built-in, small volume, simple, high stability. Hydraulic pressure is adjustable, factory adjustment setting output thrust or torque

4. No need to open the cover for commissioning, parameters can set and configured through panel buttons or non-invasive infrared setters

5. Using automotive-grade 32-bit ARM microprocessor, fast processing speed, strong-interference ability, high stability

6. Using large-screen OLED display, Chinese and English human-machine interface is convenient and intuitive, clear display, can display, pressure, diagnosis and error indication.

7. Data logging function, with fault records, operation records log, alarm records and other logs, easy to query trace

8. Perfect protection function, can achieve phase loss protection, temperature protection, stall protection, jam protection, pressure protection, intelligent jam protection, fault protection, etc.

9. Multiple communication modes: analog quantity, digital quantity, PROFIBUS, MODBUS, etc.

10. Singleacting, double-acting, switch type, regulating type multi-series models can be selected

11. It has dual overpressure protection of overflow valve and sensor, and the pressure can be displayed intuitively in digital

12. Quickly open or close the valve in case of fault

13 In case of power failure fault, the valve can be opened, closed or stopped to maintain position

14. Zero leakage design, less maintenance, high
