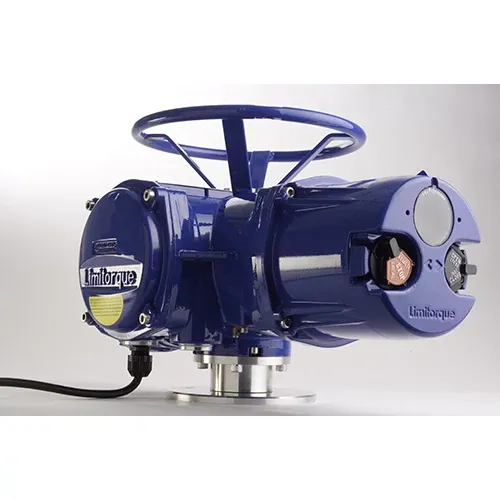

Limitorque-Non-invasive Multi-turn Actuator - MXa

Features and advantages

Non-invasive electronic design

With a variety of configurations including only torque, thrust-based, direct-stroke thrust base and lift rod

Weatherproof, explosion-proof and diving applications

100% repeatable redundant absolute encoders for position sensing

Electronic torque switch

3-phase, 1-phase and DC motors

Instantaneous actuator status and valve position display in 11 languages

Operate temperatures as low as -60°C (-76°F), with arctic temperature and solid-state starter options, for applications that require up to1200 starts per hour for commissioning

Specifications

Passed all global explosion-proof certifications

Compliant with relevant European directives (CE mark)

Designed in accordance with-15714

AWWA C542

Torque range: from 20ft.lbs. to 170ft.lbs output torque - additional torque can be supported after gearbox is added

Debugging service

MX can be used for debugging applications with up to 1200 starts per hour.

Network services

The MX can be used for network applications with Modbus, Foundation Fieldbus, Profibus DP or PA, DeviceNet andART.

Direct-acting control valve service

MX can be used with control valves that require the use of a direct-acting thrust base for precise positioning.

Unidirectional ACV motor voltage

MX can be used for unidirectional ACV applications that use BLDC motors and solid-state motor to achieve reliable and safe operation.
