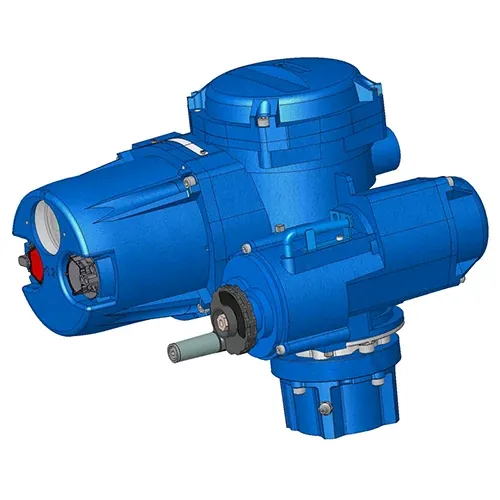

Limitorq-Non-invasive Multi-turn Actuator - QXM

Features and advantages

Non-invasive electronic design

Weather-proof, explosion-proof and diving applications

100% re-redund absolute encoder for position sensing

3-phase, 1-phase and DC motors

Lower operational cost compared to pneumatic actuators and the advantages electric operation

Higher process control accuracy, meeting and exceeding EN15714 (Class D) and IEC60034 commissioning standard

Electromagnetic noise protection of process control signals, increased reliability by electronic torque switch

Specifications

Global all explosion-proof certifications

Compliant with relevant European directives (CE mark)

Design in accordance with EN-15714

AWWA C540

Rated torque range: 18 to 250 ft-lb output torque

Configuration

Service for commissioning

The QXM can be used for commissioning applications with up to 1800 starts per hour

Service for networked systems

The QXM can be used for networked applications with Modbus, Foundation Fieldbus, Profibus DP or PA, DeviceNet and HART

Service for linear control valves

The QXM can be used with control valves which may require precise positioning with a linear thrust base
