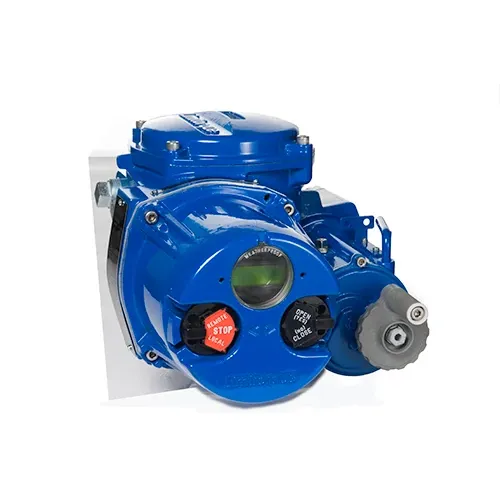

Limitorq-Non-invasive right angle rotary actuator—QX

Features and advantages

Non-contacting absolute encoders provide you with precise position detection, allowing for enhanced process control

B.I.S.T Built-in self-test function, even if the main power is cut off, it can save position data without a battery

With non-invasive design 100% solid-state control and reliable digital communication control system, to achieve excellent performance in harsh environments

Flexible control configuration, support for 1 languages for settings and diagnostics, and advanced brushless DC motors that support most global voltages (AC or DC), can provide you with versatility

10% repeatable redundant absolute encoder for position sensing

Electronic torque switch

3-phase, 1-phase and DC motors

Specifications

Passed all global explosion-proof certifications

Compliant with relevant European directives (CE mark)

Designed in accordance with-15714

AWWA C540

Rated torque range: from 40 to 1500 ft- output torque

Configuration

Non-intrusive, 100% solid-state standard on-off application

Non-intrusive, 10% solid-state, adjustable per hour to 1800 to EN15714 start, D class - continuous operation

Non-intusive, 100% solid-state network application - Modbus, Foundation Fieldbus, HART, DeviceNet, with redundant Profibus DP Profibus PA
