The S-Series intelligent electric actuators from SCIYON (Nanjing Sciyon Wisdom Technology Group Co., Ltd., stock code 002380, founded in 1993, listed on the Shenzhen Stock Exchange in 2010, national-level manufacturing single champion) have been on the market since 2008 and comprise three categories: Starfish intelligent, Diamond intelligent variable-speed, and Grampus marine intelligent. The S-Starfish intelligent series is the main product line of the S-Series, integrating an absolute-position encoder, LCD display, magnetic-control technology, fieldbus, infrared remote control, Bluetooth wireless transmission and control technologies, widely used in power, petroleum, papermaking, chemical, steel, cement, shipbuilding and water treatment industries.

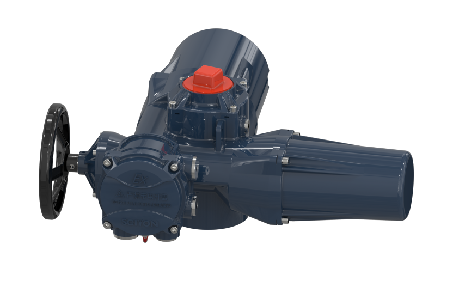

SCIYON S-Series intelligent electric actuator (image source: SCIYON official website)

Categories and Ranges

Note: K = on/off type, M = modulating type; the SYK8XXX series is formed by stacking SYK2XXX~SYK5XXX with gearboxes, with maximum control torque up to 30,000Nm; common output speeds include 24/48/96rpm.

Unique Design

• Independently developed absolute encoder (invention patent ZL 2019 1 1234391.2): absolute position acquisition via planetary gear transmission, control accuracy below 0.5%; compact, free of light decay, unaffected by dust, tolerant of high working temperature
• Sunflower-disk wiring with double sealing: isolates the interior from the outside, protecting the motor and control circuits; 100% air-tightness test on the electrical compartment
• Complete protection system: high-performance MCU monitors module circuits in real time, measures motor current/voltage for torque protection and motor temperature for over-temperature protection
• Core units self-mastered: magnetic encoder, forward/reverse solid-state relays etc. are all independently designed and produced
• Airplane-porthole display window: double-layer window with thermal insulation to prevent condensation
• Electronic password lock: mode switching requires a user-configurable password in addition to the mechanical lock
• Automatic pressure adjustment in the transmission chamber: pressure caused by temperature rise is released automatically; seals require no replacement during the product life cycle

Reliable Design

• IP68 protection: standard products are rain/dust proof (outdoor type: 2m for 96h); the waterproof type can be submerged to 20m for 96 hours with full-stroke electrical operation available during submersion
• High-precision valve-position acquisition: the encoder is coupled to the output shaft with zero backlash; accuracy tested at 0.39% by the Shanghai Institute
• Intelligent self-check: on power-up all functional components are monitored; on failure the actuator is inhibited and local/remote alarms are raised
• Lightning-proof design: tested for surge protection, safer in thunderstorms and open-air installations
• Manual-priority design: high-speed handwheel drive; manual operation without power remains safe even with remote commands present
• Strong anti-interference: EMC industrial level 3, withstands ±2kV burst interference and 6kV ESD
• Phase-sequence auto identification: three-phase supply can be wired arbitrarily
• Partial-stroke test (PST): runs a short stroke and returns to detect valve sticking
• Non-intrusive design: commissioning without opening the electrical compartment cover
• Non-volatile storage: commands, operation counts, fault records, instantaneous and average output torque values survive power loss

Intelligent Protection and Functional Safety

• Certified for functional safety SIL3
• Precise torque protection: measures real output torque from motor current, voltage and flux — no torque switches, bidirectional independent setting
• Travel limit protection: SY uses electronic travel protection; ST provides mechanical + electronic double protection, both bidirectionally configurable
• Phase-loss, over-temperature (embedded thermal sensor), over-current, instantaneous-reversal delay, interlock, menu password lock and valve un-jamming protections (first over-torque automatically clears valve blockage)

Simple Operation

• Active-emission LCD without backlight panel, large viewing angle; valve position, torque and command displays plus valve characteristic curves; high-brightness LEDs at closed/intermediate/open positions
• Chinese/English menus: basic settings, advanced settings, diagnostics, Bluetooth settings, factory settings, alarm descriptions
• Infrared remote and Bluetooth APP: scan the built-in QR code to download the APP for parameter viewing/modification, wireless program download and cover-free upgrade
• Four magnetic buttons on the local panel (mode, open, close, stop) with jog/hold modes
• ESD emergency control circuit: hold-in-position, open, close, or move-to-position
• Remote control: digital (2/3/4-wire), analog (4~20mA), fieldbus; every feedback contact is configurable
• Rich diagnostics: 16 fault records (non-volatile), operation statistics, open/close torque curves, NTC temperature monitoring, valve characteristic curve adjustment

Diverse Fieldbus Control

Specifications

Power supply: 380VAC±10% / 440VAC±10% / 480VAC±10% / 220VAC (-15%~+10%); 50Hz±1% or 60Hz±1%; harmonics <5%.

Environment: -25℃~+70℃ (standard) / -25℃~+105℃ (high temperature) / -40℃~+70℃ (low temperature) / -60℃~+70℃ (ultra-low temperature); humidity ≤95% non-condensing; 86~106kPa; altitude ≤2000m.

Standards: GB/T26155.1-2010, GB/T26155.2-2012, GB/T28270-2012, DL/T 641-2015, GB/T12222-2023, GB/T12223-2023, ISO5210-2023, ISO5211-2023, JB/T 9535-2013, GB3836.1/2/31-2021, etc.

Tailored Solutions

Split-type solutions (mechanical unit suitable for high-vibration, inaccessible, up to 105℃, toxic-gas and underwater-to-20m environments; split cable up to 50m), anti-corrosion, low-temperature, multi-way piping, long-distance pipeline, gas-well, fire-proof and water-hammer protection solutions.

Document Download

• SCIYON S-Series STARFISH intelligent electric actuator catalogue (V1.60, PDF)

See also the S-Diamond intelligent variable-speed series and EHA-SY electro-hydrostatic actuators in the following articles of this column.
