The IKT series is AUTORK's integrated quarter-turn electric actuator: it inherits the electronic unit of the IK series while integrating the quarter-turn mechanics, typically driving rotary control valves such as butterfly, ball and eccentric rotary plug valves. Compared with the IK series, IKT is smaller, lighter and more cost-effective; like IK, it comes in on/off and modulating types.

Main Specifications (official)

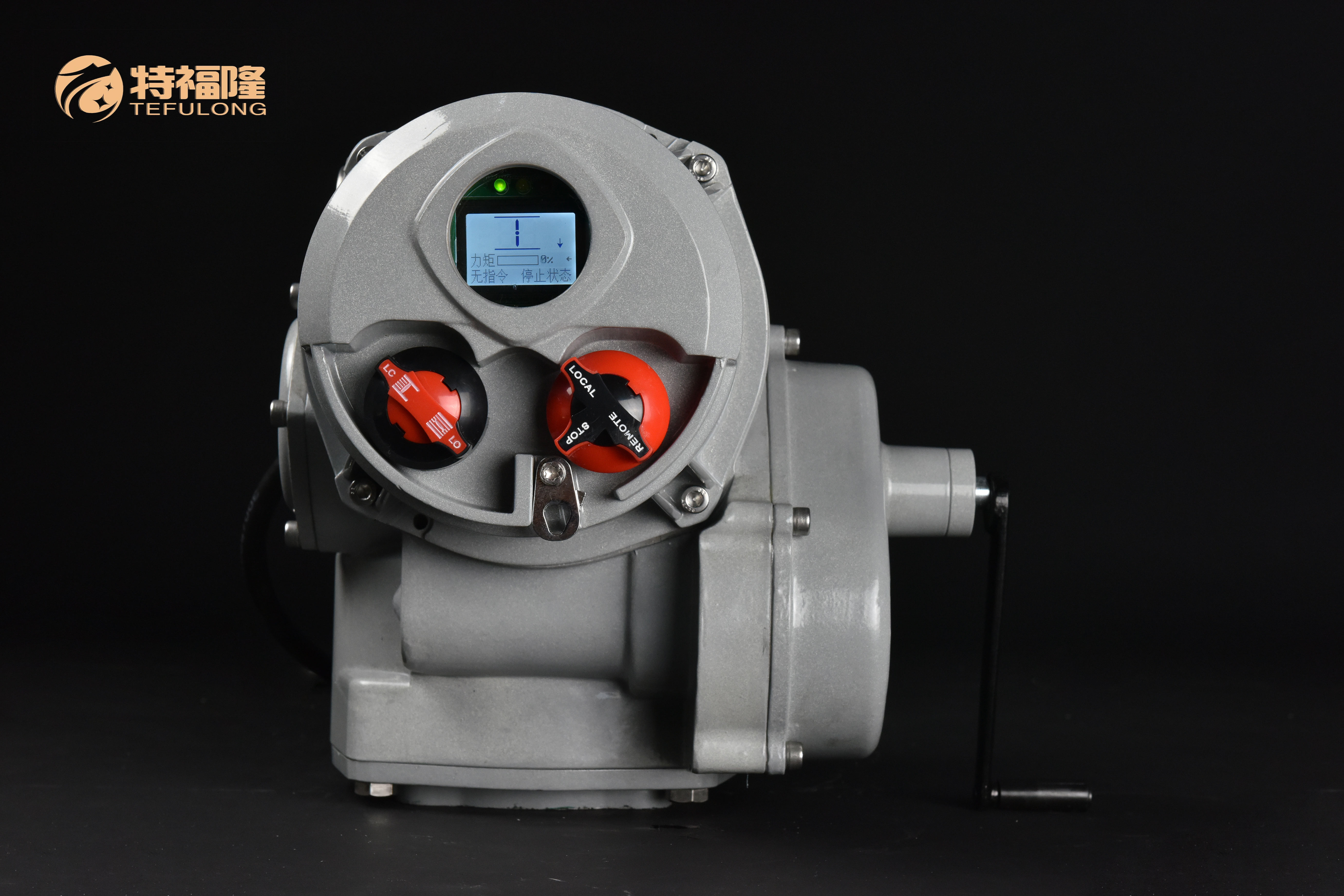

IKT quarter-turn actuator, front

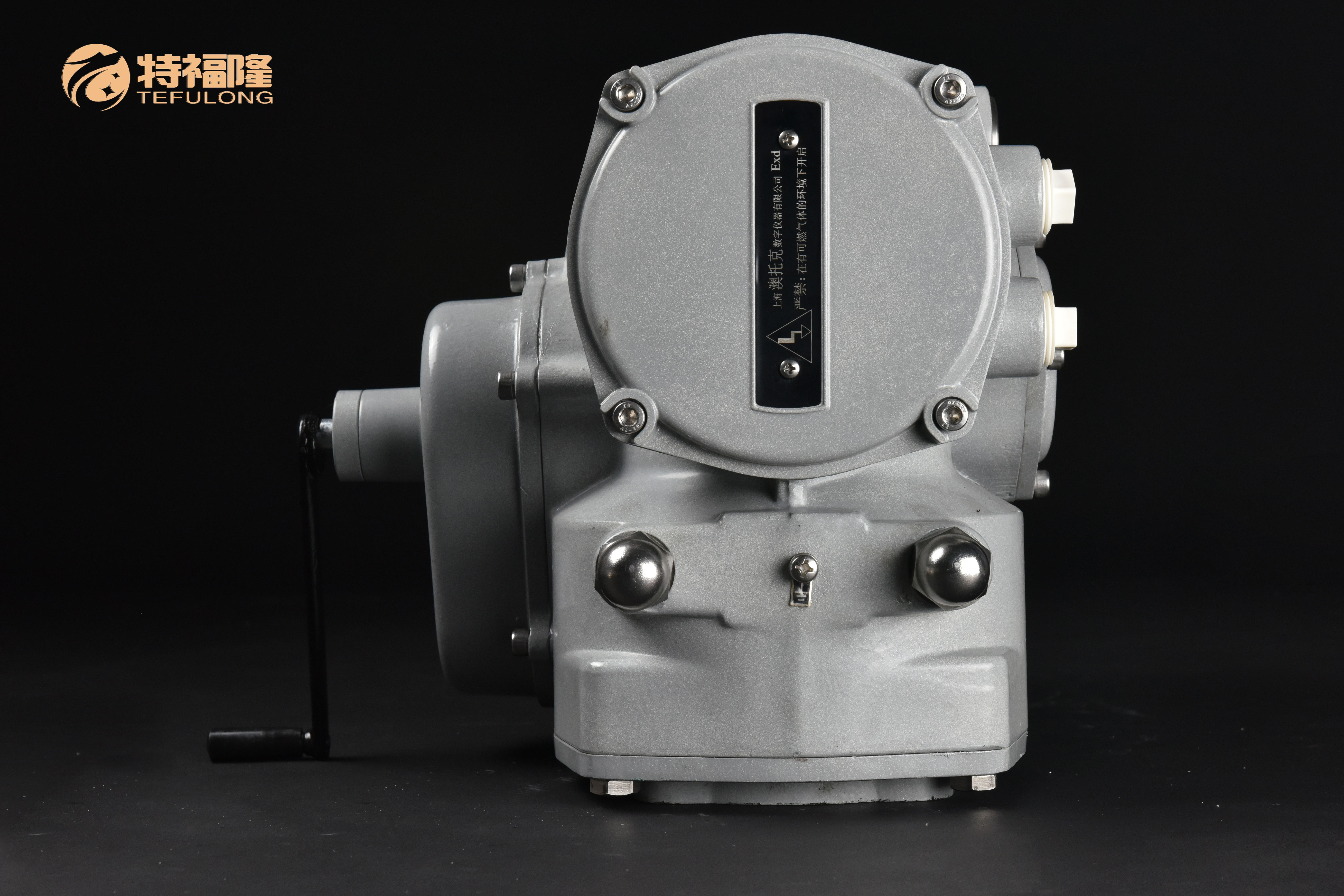

IKT series variant

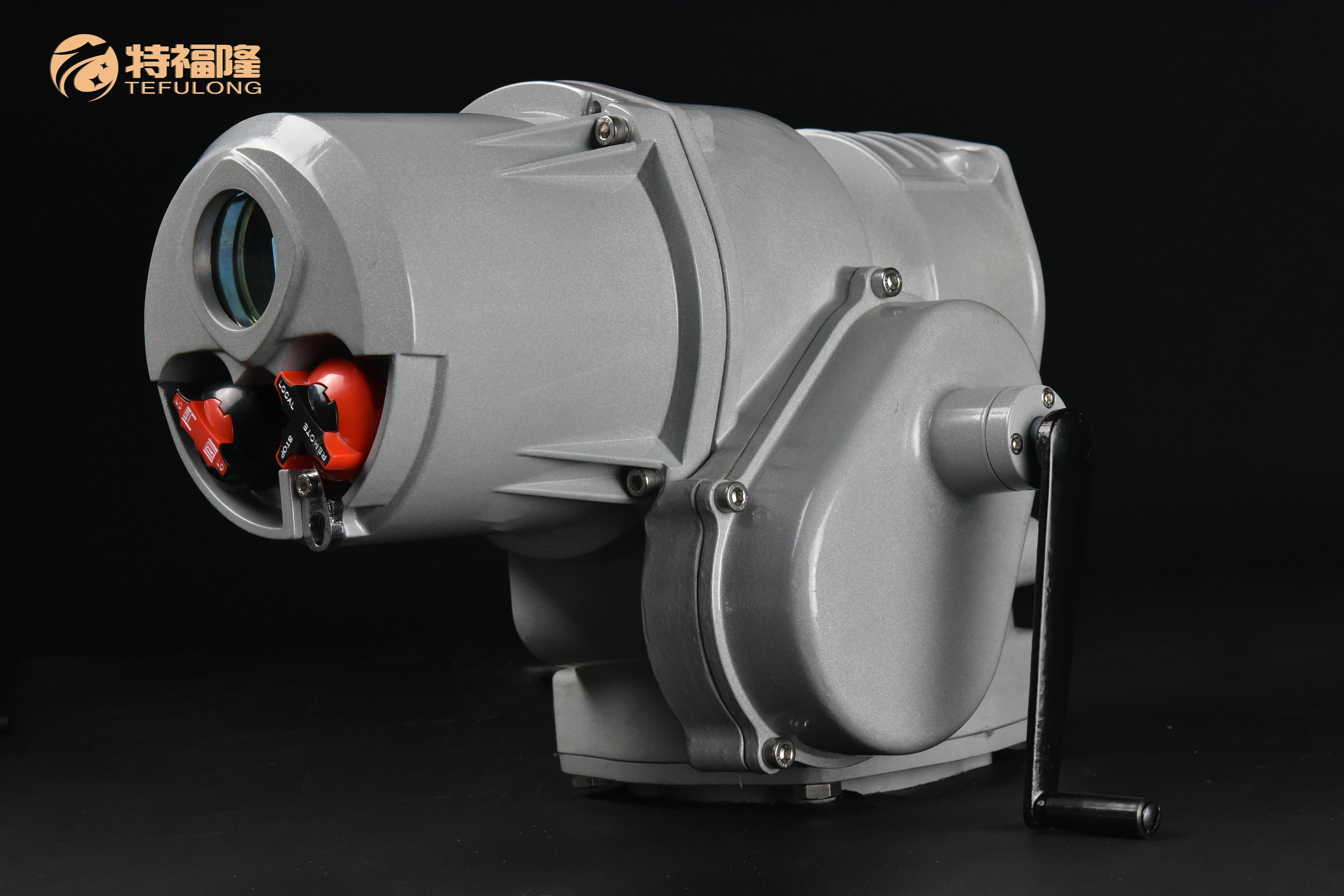

IKT series variant 2

Common IK/IKT Features (official)

• Strong self-protection: on improper operation the actuator protects itself and auto-corrects for safe, reliable use
• 4 (expandable to 8) dry-contact outputs: each contact field-configurable NO/NC, rated 5A@250VAC or 5A@30VDC
• 27 trigger conditions: including fully-open, fully-closed, protection alarm and more

Selection Notes

IKT shares the electronic platform with the multi-turn IK series: choose IKT for integrated quarter-turn duty (no bracket/coupling needed), IK for multi-turn gate and globe valves. Specify on/off or modulating when ordering; the 220~600V supply covers common plant levels. Full selection data is in AUTORK's official electric actuator selection catalogue (see the brand overview for the link).
