The IK series is AUTORK's intelligent multi-turn electric actuator, built on internationally proven mainstream technology; with additional stroke-output components it can be configured as a quarter-turn or linear actuator. IK is AUTORK's flagship series — its functions and performance rival leading international brands; besides standard models, low-temperature, flameproof (Exd) and marine variants are available.

IK intelligent multi-turn actuator (image source: AUTORK official website)

Main Specifications (official)

Common IK/IKT Features

• Strong self-protection: on improper operation the actuator self-protects and auto-corrects
• 4 (expandable to 8) dry-contact indication outputs (5A@250VAC or 5A@30VDC): each contact NO/NC configurable, with 27 trigger conditions including fully-open, fully-closed and protection alarms; all settable via software
• Monitoring contacts (8A@250VAC or 8A@30VDC, NO+NC) indicate the validity of the actuator's electrical system, triggered by any of: phase loss, loss of control power, local-control selected, local-stop selected, motor thermal-protection trip

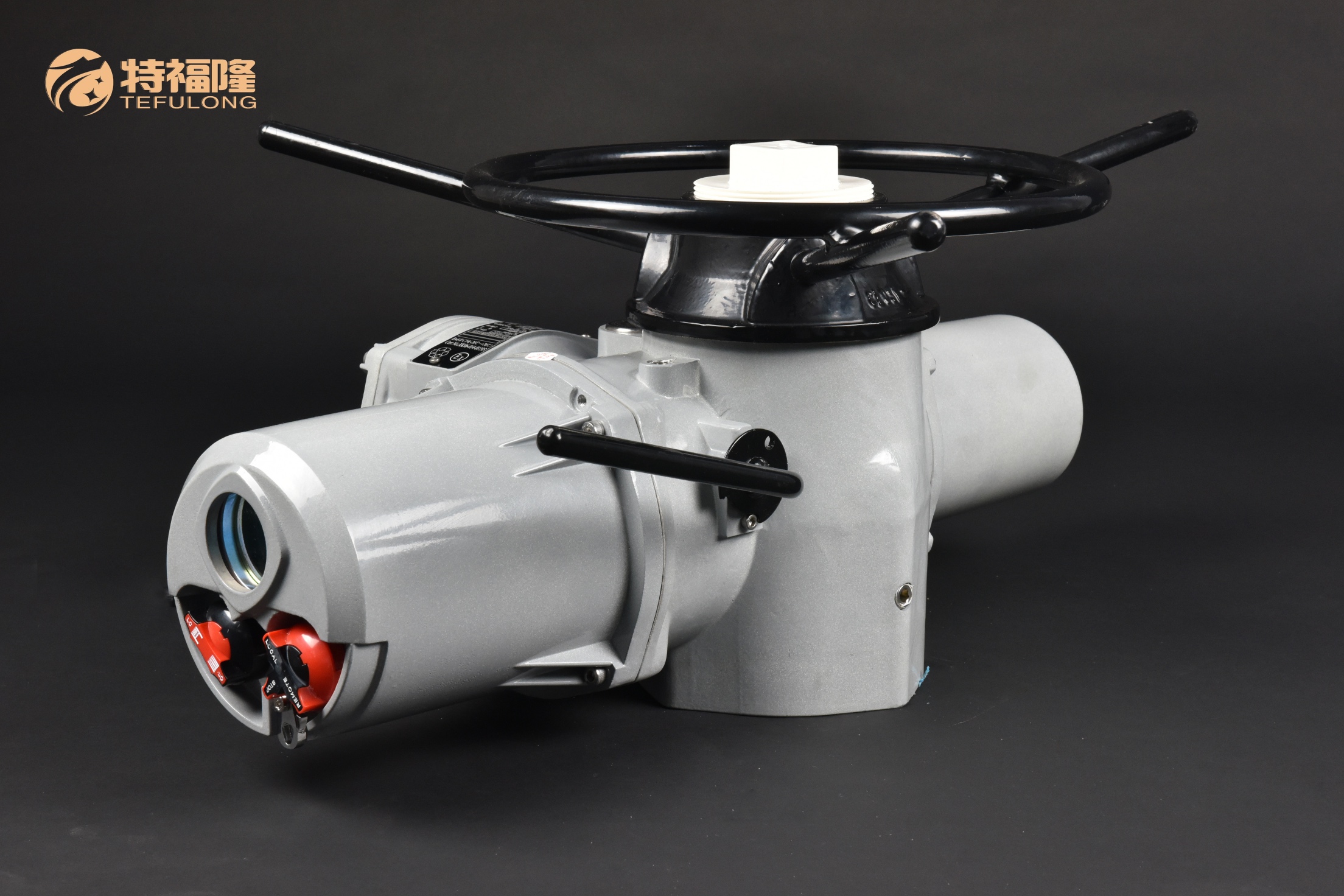

IK series variant (image source: AUTORK official website)

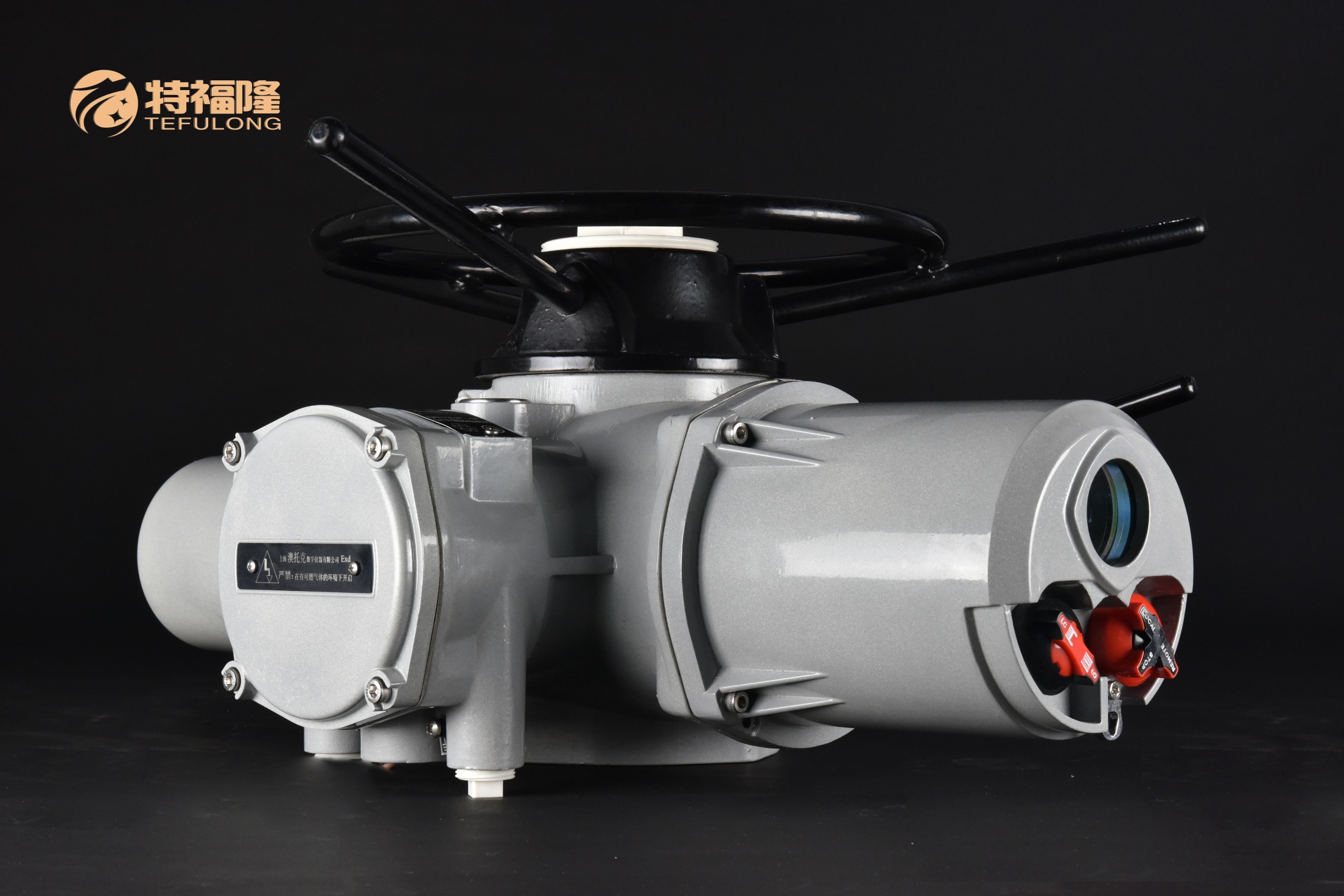

IK flameproof (Exd) version (image source: AUTORK official website)

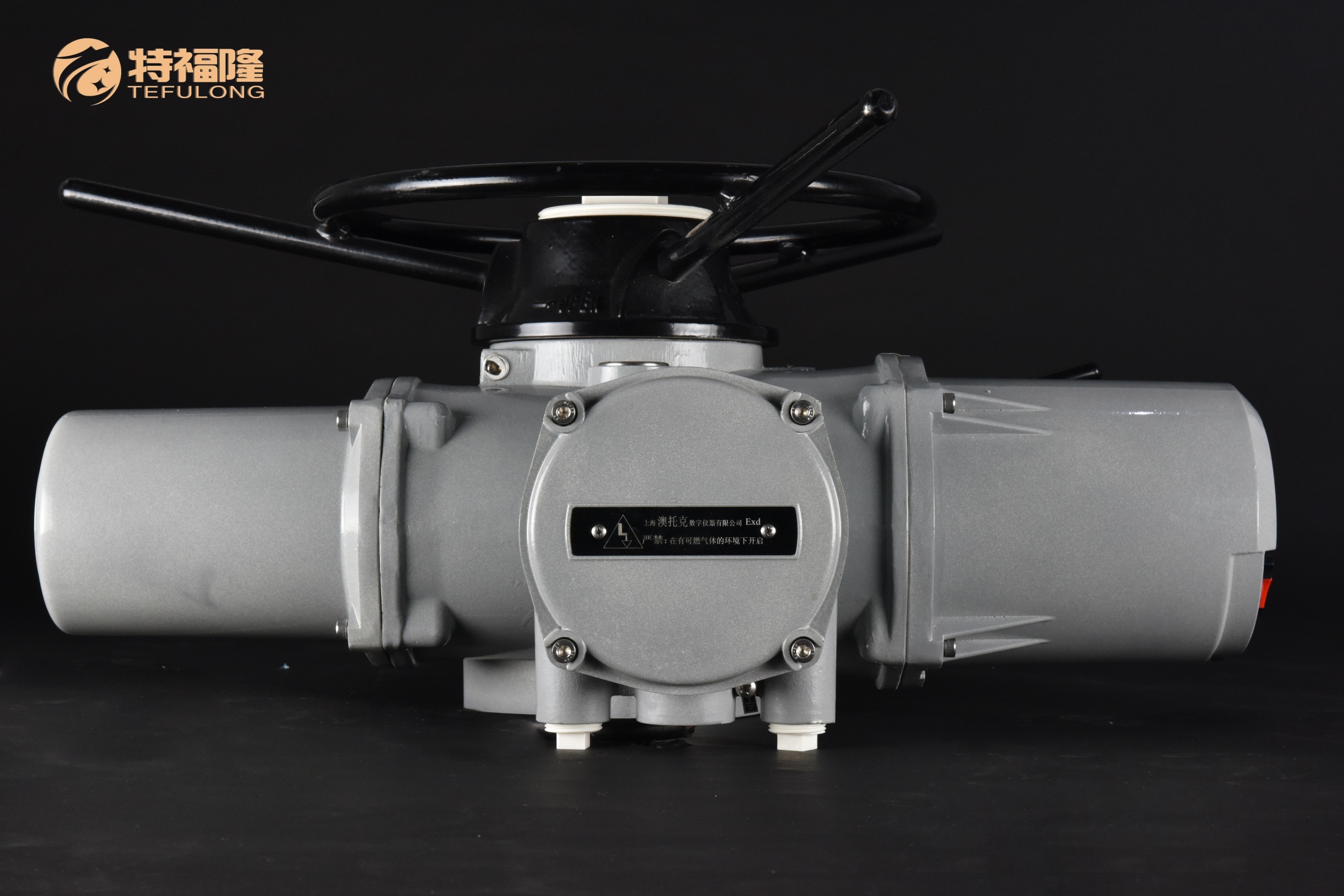

IK flameproof, front view (image source: AUTORK official website)

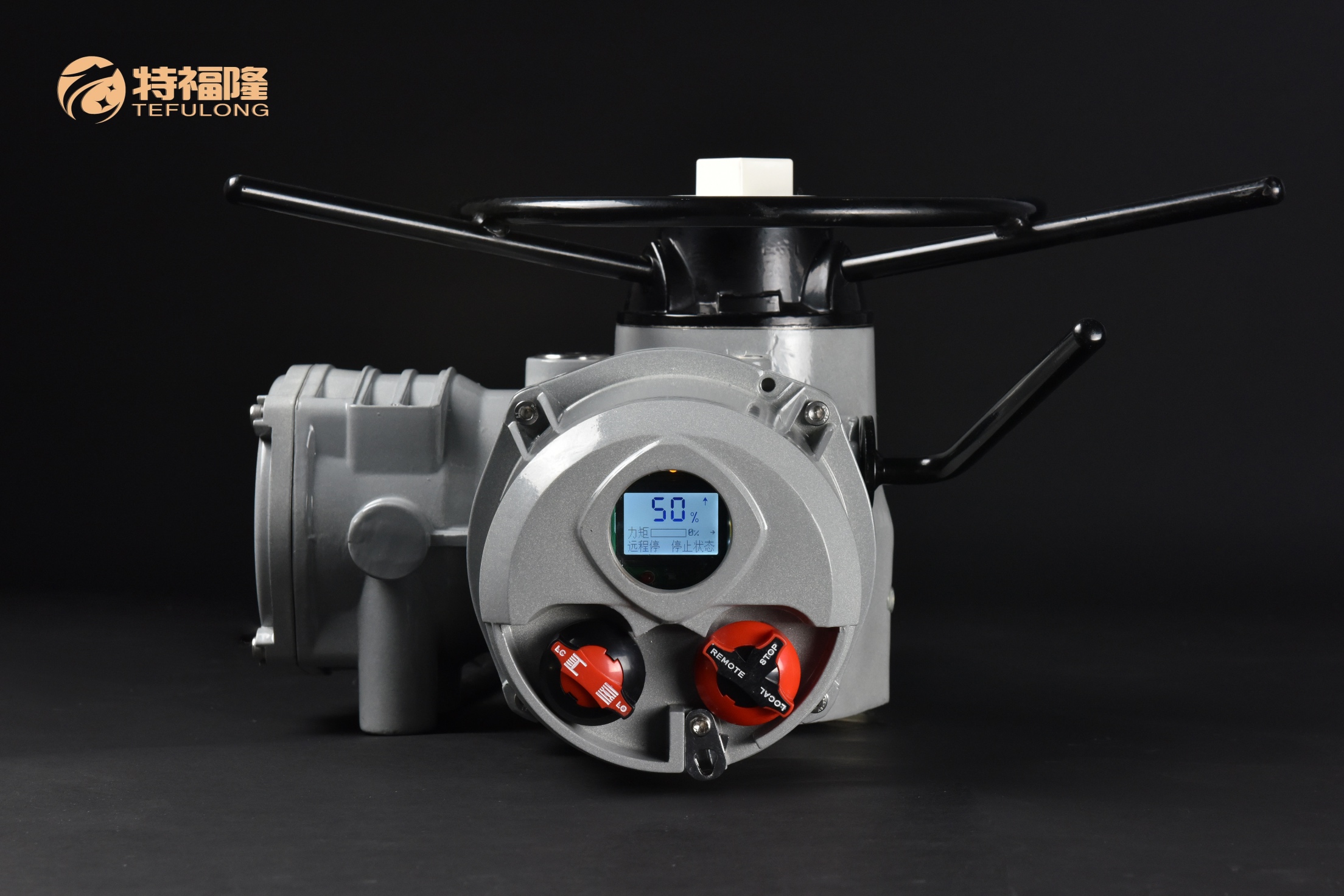

IK series variant (image source: AUTORK official website)

Selection Notes

• For multi-turn duties (gate/globe valves): select the IK base unit directly
• Quarter-turn or linear: configured from IK with the respective stroke-output components (IKT is the IK electronic unit integrated with quarter-turn mechanics — see the IKT article)
• Order low-temperature, flameproof or marine variants per site conditions

Full selection data is in AUTORK's official selection catalogue (see the brand overview for the link).
